REMOVAL
3.7L & 4.7L
1. Siphon power steering reservoir.
2. Remove the cooler return hose at the reservoir.
3. Disconnect the pressure hose nut at the pump.
4. Remove the pressure hose at the pump.
5. Remove serpentine drive belt, (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).

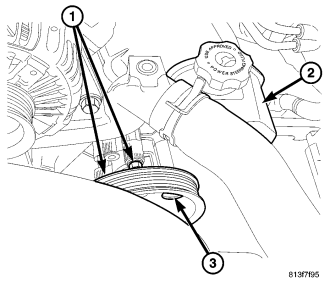

6. Remove 3 pump mounting bolts (1).
7. Remove pulley from pump if necessary (Refer to 19 - STEERING/PUMP/PULLEY - REMOVAL).
5.7L
1. Siphon power steering reservoir.
2. Remove the air intake tube.
3. Remove the drive belt.

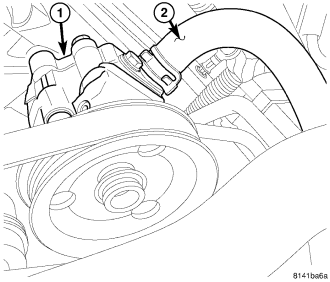

4. Disconnect the supply hose (2) at the pump (1).
5. Disconnect the pressure line at the pump.
6. Remove the three pump mounting bolts.
6.1L

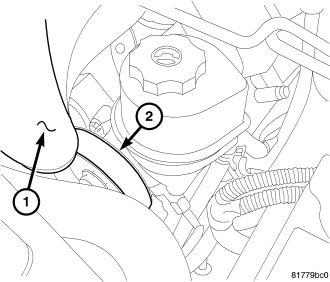

1. Remove the air inlet tube (1) from the throttle body.
2. Remove serpentine drive belt (2), (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
3. Siphon power steering reservoir.

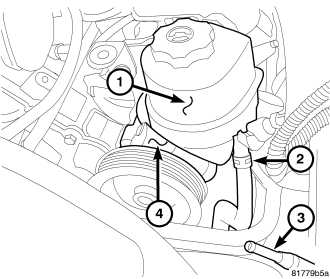

4. Remove the cooler return hose (2) at the reservoir (1).
5. Disconnect the pressure hose nut (3) at the pump (4).
6. Remove 3 pump mounting bolts.
7. Remove pulley from pump if necessary (Refer to 19 - STEERING/PUMP/PULLEY - REMOVAL).
