PASSENGER AIRBAG
DESCRIPTION
The horizontal surface of the instrument panel top pad (1) above the glove box is the most visible part of the passenger airbag. The passenger airbag door is integral to the top of the instrument panel top pad above the glove box opening on the instrument panel in front of the front seat passenger seating position.
Located below the passenger airbag door area of the instrument panel top pad, the molded thermoplastic passenger airbag retainer is secured to the underside of the top pad. The retainer defines the airbag door breakout area of the top pad and serves as the receptacle for the passenger airbag cushion and housing. Numerous small window openings on the forward and rearward flanges of the receptacle receive mating hook formations stamped into the airbag housing, which locate and secure the housing to the top pad.

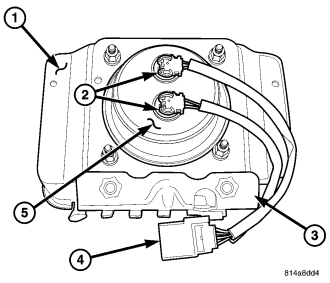

The passenger airbag unit (1) is also secured by two screws through a stamped mounting bracket (3) to the instrument panel structural support. The passenger airbag unit used in this vehicle is a multistage type that complies with revised federal airbag standards to deploy with less force than those used in some prior vehicles. The passenger airbag unit consists of a stamped and welded metal housing, the airbag cushion, and the airbag inflator (5). The airbag housing contains the airbag inflator and the folded airbag cushion. An approximately 80 centimeter (31.5 inch) wide by 90 centimeter (35.5 inch) high rectangular fabric cushion is used.
The airbag inflator (5) is a non-azide, pyrotechnic-type unit that is secured to and sealed within the airbag housing. A short four-wire pigtail harness with a keyed, yellow connector insulator (4) connects the two inflator initiators (2) to the vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness.
The passenger airbag cannot be repaired, and must be replaced if deployed, ineffective, or in any way damaged. The passenger airbag door and retainer are serviced only as a unit with the instrument panel top pad. If the passenger airbag is deployed, the instrument panel top pad must also be replaced.
OPERATION
The multistage passenger airbag is deployed by electrical signals generated by the Occupant Restraint Controller (ORC) through the passenger airbag squib 1 and squib 2 circuits to the two initiators in the airbag inflator. By using two initiators, the airbag can be deployed at multiple levels of force. The force level is controlled by the ORC to suit the monitored impact conditions by providing one of four delay intervals between the electrical signals provided to the two initiators. The longer the delay between these signals, the less forcefully the airbag will deploy.
When the ORC sends the proper electrical signals to each initiator, the electrical energy generates enough heat to initiate a small pyrotechnic charge which, in turn ignites chemical pellets within the inflator. Once ignited, these chemical pellets burn rapidly and produce a large quantity of inert gas. The inflator is sealed to the airbag cushion and a diffuser in the inflator directs all of the inert gas into the airbag cushion, causing the cushion to inflate. As the cushion inflates, the passenger airbag door area of the instrument panel top pad will split at predetermined tear seam lines concealed on the underside of the top pad, then the door will pivot up over the top of the instrument panel and out of the way. Following an airbag deployment, the airbag cushion quickly deflates by venting the inert gas through vent holes within the fabric used to construct the back (windshield side) of the airbag cushion.
Typically, both initiators are used during an airbag deployment event. However, it is possible for only one initiator to be used during a deployment due to an airbag system fault; therefore, it is necessary to always confirm that both initiators have been used in order to avoid the improper disposal of potentially live pyrotechnic materials. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A SUPPLEMENTAL RESTRAINT DEPLOYMENT).
Proper diagnosis of the passenger airbag inflator and squib circuits requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.
REMOVAL
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid personal injury or death, when removing a deployed airbag, rubber gloves, eye protection, and a long-sleeved shirt should be worn. There may be deposits on the airbag unit and other interior surfaces. In large doses, these deposits may cause irritation to the skin and eyes.
NOTE: The following procedure is for replacement of an ineffective or damaged passenger airbag. If the airbag is ineffective or damaged, but not deployed, review the recommended procedures for handling non-deployed supplemental restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-DEPLOYED SUPPLEMENTAL RESTRAINTS). If the passenger airbag has been deployed, review the recommended procedures for service after a supplemental restraint deployment before removing the airbag from the vehicle. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A SUPPLEMENTAL RESTRAINT DEPLOYMENT).

1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
2. Remove the instrument panel from the passenger compartment of the vehicle. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL).
3. Place the instrument panel on a suitable work surface with the top pad facing down. If the top pad will be reused, be certain to take the proper precautions to prevent the top cover from receiving cosmetic damage during the following procedures.
4. Disconnect the passenger airbag pigtail wire connector from the instrument panel wire harness connector for the airbag. This connector is secured to the passenger airbag mounting bracket. To disconnect the connector:
a. Slide the red Connector Position Assurance (CPA) lock on the top of the connector toward the side of the connector.
b. Depress the connector latch tab and pull the two halves of the connector straight away from each other.

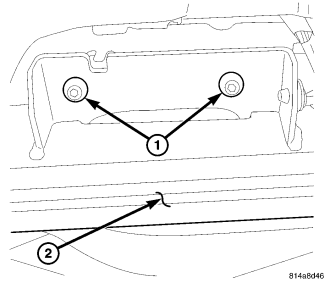

5. Remove the two screws (1) that secure the airbag mounting bracket to the instrument panel structural support (2).
6. Remove the top pad from the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL).

7. Disengage each of the hooks (2) of the airbag housing from the windows in the forward and rearward vertical walls of the airbag retainer (1) on the underside of the top pad. To disengage the hooks, use hand pressure to push the adjacent edge of the airbag housing firmly and evenly downward into the retainer receptacle, while at the same time pulling outward on the upper edge of the receptacle wall.
8. With all of the hooks disengaged, lift the housing, inflator, and cushion as a unit from the retainer receptacle on the underside of the instrument panel top pad.
INSTALLATION
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid personal injury or death, when removing a deployed airbag, rubber gloves, eye protection, and a long-sleeved shirt should be worn. There may be deposits on the airbag unit and other interior surfaces. In large doses, these deposits may cause irritation to the skin and eyes.
WARNING: Use extreme care to prevent any foreign material from entering the passenger airbag, or becoming entrapped between the passenger airbag cushion and the instrument panel top pad. Failure to observe this warning could result in occupant injuries upon airbag deployment.
WARNING: The instrument panel top pad must never be painted. Replacement top pads are serviced in the original colors. Paint may change the way in which the material of the top pad responds to an airbag deployment. Failure to observe this warning could result in occupant injuries upon airbag deployment.
NOTE: The following procedure is for replacement of an ineffective or damaged passenger airbag. If the airbag is ineffective or damaged, but not deployed, review the recommended procedures for handling non-deployed supplemental restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-DEPLOYED SUPPLEMENTAL RESTRAINTS). If the passenger airbag has been deployed, review the recommended procedures for service after a supplemental restraint deployment before removing the airbag from the vehicle. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A SUPPLEMENTAL RESTRAINT DEPLOYMENT).

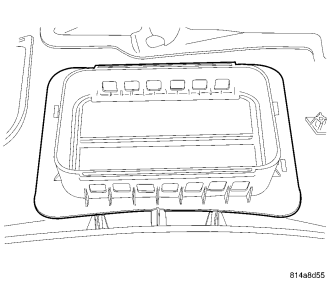

1. Place the instrument panel top pad on a suitable work surface with the airbag retainer (1) receptacle facing up. Be certain to take the proper precautions to prevent the top pad from receiving cosmetic damage during the following procedures.
2. Carefully position the passenger airbag housing into the airbag retainer receptacle.

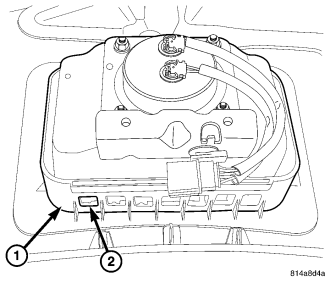

3. Work around the perimeter of the unit engaging each of the hooks (2) on the passenger airbag housing through the windows in the forward and rearward vertical walls of the retainer receptacle.
4. Reinstall the top pad onto the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - INSTALLATION).

5. Install and tighten the two screws (1) that secure the airbag mounting bracket to the instrument panel structural support (2). Tighten the screws to 12 N·m (105 in. lbs.).
6. Reconnect the passenger airbag pigtail wire connector to the instrument panel wire harness connector for the airbag. This connector is secured to the outside of the outboard airbag unit end bracket. Be certain that the latch on the connector and the red Connector Position Assurance (CPA) lock are each fully engaged.
7. Reinstall the instrument panel into the passenger compartment of the vehicle. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION).
8. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST).
