RISER-REAR
REMOVAL
1. Remove rear seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - REMOVAL).

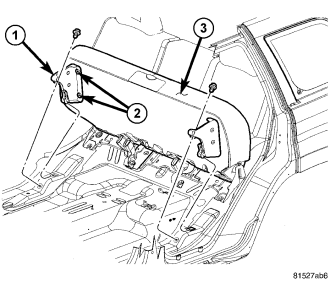

2. Remove the two bolts (2) holding the riser (1) to the seat cushion (3).
INSTALLATION
1. Align the riser (1) onto the seat cushion (3) and install the two mounting bolts (2). Tighten bolts to 45 N·m (33 ft. lbs.).
2. Install the seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - INSTALLATION).
