SEAT BACK-REAR
REMOVAL
1. Remove the rear seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - REMOVAL).

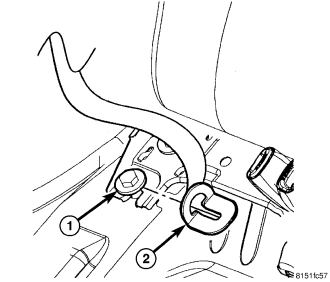

2. Loosen outboard lower anchor bolts (1) and slide the rear seat belt anchor (2) off the bolt.
3. Remove the four rear seat back mounting bolts (1) and remove seat back from vehicle.
INSTALLATION
1. Place the rear seat back into position by slipping the hinge bracket onto the two outboard lower bolts.
2. Install the other four mounting bolts (1). Remember to install the three inner seat belt buckles. Torque the bolts to 50 N·m (37 ft. lbs.).
3. Slide the two outboard seat belt anchors (2) onto the outboard lower bolts (1). Tighten bolts to 50 N·m (37 ft. lbs.).
4. Install the rear seat cushion (Refer to 23 - BODY/SEATS/SEAT CUSHION - INSTALLATION).
