FRONT TOW HOOK
REMOVAL

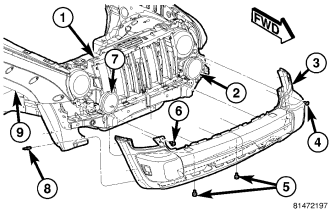

NOTE: Front fascia must be removed to replace the stud plate (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL).

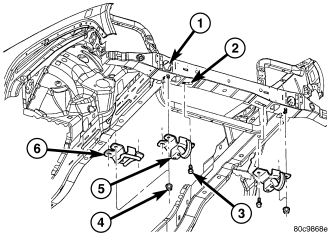

1. Remove the nuts and bolt and remove the tow eye/hook.
INSTALLATION
1. Install the stud plate if previously removed.
2. Install the tow eye/hook.
3. Install the nuts and bolt and tighten to 61 N·m (45 ft. lbs.).
4. Install the front fascia if the stud plate was replaced (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION).
