FRONT FASCIA
REMOVAL
1. Remove the grille (Refer to 23 - BODY/EXTERIOR/GRILLE - REMOVAL).

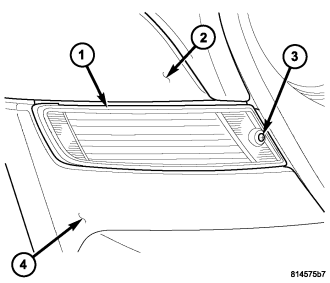

2. Remove the turn signal lamps (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/PARK/TURN SIGNAL LAMP - REMOVAL).

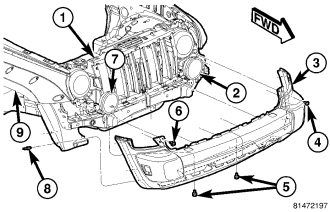

3. Remove the fascia screws next to the turn signal lamps (6).
4. Remove the two screws at the bottom of the fascia (5).
5. Remove the three plastic rivets (8) securing the fascia (3) to each wheelhouse splash shield.
6. Release the three tabs securing the fascia to the grille opening reinforcement (1).
7. Remove the fascia (3).
INSTALLATION
1. Position the fascia (3) onto the vehicle and align the center pin into the hole located near the center of the grille opening reinforcement (1).
2. Secure the three tabs onto the grille reinforcement fully.
3. Install the two screws (4 & 6) next to the turn signal lamps.
4. Install the two lower screws (5).
5. Install new rivets (8) attaching the wheelhouse splash shield to the fascia (3).
6. Install the turn signal lamps (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/PARK/TURN SIGNAL LAMP - INSTALLATION).
7. Install the grille (Refer to 23 - BODY/EXTERIOR/GRILLE - INSTALLATION).
