REAR FASCIA SUPPORT
REMOVAL

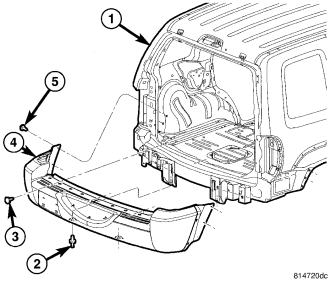

1. Remove the rear fascia assembly (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - REMOVAL).

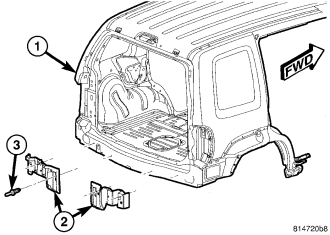

2. Remove the four rivets and remove the two fascia supports.

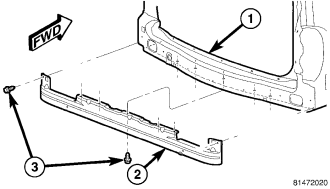

3. For export models, remove the seven bolts and remove the fascia support.
INSTALLATION
1. For export models, install the fascia support and install the seven bolts.
2. Install the fascia supports onto the vehicle and install four new rivets.
3. Install the rear fascia assembly (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR FASCIA - INSTALLATION).
