REAR FASCIA
REMOVAL
1. Remove the wheel flares (rear) (Refer to 23 - BODY/EXTERIOR/REAR WHEEL OPENING FLARE MOLDINGS - REMOVAL).
2. Remove the rear lamp units (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/REAR LAMP UNIT - REMOVAL).

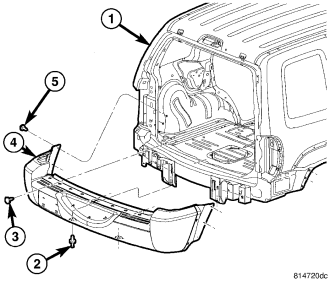

3. Remove the four side bolts.
4. Remove the two bottom rivets.
5. Remove the 3 screws along the upper edge.
6. Separate the side plastic retainers and remove the fascia from the vehicle.
INSTALLATION
NOTE: Fascia must be pushed completely forward to allow the plastic retainers full engagement in their respective slots.
1. Install the fascia and insert the plastic retainers.
2. Install the three upper screws.
3. Install the four side bolts.
4. Install two bottom rivets.
5. Install the rear lamp units (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/REAR LAMP UNIT - INSTALLATION).
6. Install the rear half wheel opening flares (Refer to 23 - BODY/EXTERIOR/WHEEL OPENING FLARE MOLDING - INSTALLATION).
