2007 Liberty KJ Factory Service Manual 21 - TRANSMISSION AND TRANSFER CASE

P0876-UD PRESSURE SWITCH RATIONALITY





For a complete wiring diagram Refer to Section 8W

Theory of Operation


The Transmission system uses five pressure switches to monitor the fluid pressure in the LR, 2C, 4C, UD, and OD clutch circuits. The pressure switches are continuously monitored for the correct states in each gear as shown.



Possible Causes

RELATED RELAY DTC'S PRESENT

LOW FLUID LEVEL

NO. 2 CHECK BALL CUT OR DAMAGED

LOW LINE PRESSURE

CRACKED OR MISINSTALLED SUMP FILTER OR SEAL

STICKING MAIN REGULATOR VALVE IN PUMP VALVE BODY

(T29) UD PRESSURE SWITCH SENSE CIRCUIT OPEN

(T29) UD PRESSURE SWITCH CIRCUIT SHORT TO GROUND

(T29) UD PRESSURE SWITCH SENSE CIRCUIT SHORT TO ANOTHER CIRCUITS

TRANSMISSION SOLENOID/TRS ASSEMBLY

TRANSMISSION CONTROL MODULE



Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)


GEAR

L/R

2C

4C

UD

OD

REVERSE

OPEN

OPEN

OPEN

OPEN

OPEN

P/N

CLOSED**

OPEN

OPEN

OPEN

OPEN

1ST

CLOSED*

OPEN

OPEN

CLOSED

OPEN

2ND

OPEN

CLOSED

OPEN

CLOSED

OPEN

2ND PRIME

OPEN

OPEN

CLOSED

CLOSED

OPEN

3RD

OPEN

OPEN

OPEN

CLOSED

CLOSED

4TH

OPEN

OPEN

CLOSED

OPEN

CLOSED

5TH

OPEN

CLOSED

OPEN

OPEN

CLOSED

*L/R is closed if output speed is below 100 rpm in Drive and Manual 2. L/R is closed in Manual 1.

**May be open when rolling in Neutral or at low oil temperatures.




Diagnostic Test

1. CHECK FOR RELATED DTCS

With the scan tool, check for other transmission DTC's.

Are there any Transmission Control Relay, Line Pressure, and/or Loss of Prime DTCs present?

Yes


No

2. CHECK FOR PRESSURE SWITCH DTCS


Are there two or more other pressure switch rationality DTCs present in addition to P0876?

Yes


No

3. CHECK IF ALL PRESSURE SWITCHES READ CLOSED

With the scan tool, read and record all DTC EVENT DATA.

NOTE: Make sure to record all DTC EVENT DATA stored in the scan tool for future reference in this test procedure.



Does the DTC EVENT DATA show all pressure switches reading CLOSED?

Yes


No

4. CHECK FOR OTHER DTCS

With the scan tool, check for other transmission DTC's.

Is the DTC P2704 present also?

Yes


No

5. CHECK DTC EVENT DATA

With the scan tool, read and record the DTC EVENT DATA.

NOTE: Make sure to record all DTC EVENT DATA stored in the scan tool for future reference in this test procedure.



Does the DTC EVENT DATA display information for the DTC P0876?

Yes


No

6. CHECK IF DTC EVENT DATA WAS SET IN PARK, NEUTRAL OR REVERSE

Refer to the DTC EVENT DATA recorded earlier.

Did the DTC P0876 set in Park, Neutral, or Reverse?

Yes


No

7. CHECK FOR UD PRESSURE SWITCH STATUS

Refer to the DTC EVENT DATA recorded earlier.

Did the DTC P0876 set with the UD Pressure Switch closed?

Yes


No

8. CHECK LINE PRESSURE

In the DTC EVENT DATA recorded earlier, compare the Line Pressure and the Desired Line Pressure.

Is the Line Pressure less than 40 PSI, and significantly below the Desired Line Pressure?

Yes


No

9. CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT



Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/TRS Assembly harness connector.
Measure the resistance between the (T29) UD Pressure Switch Sense circuit and all other circuits in the Transmission Solenoid/TRS Assembly harness connector.

Is the resistance below 5.0 ohms between the (T29) UD Pressure Switch Sense circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?

Yes


No

10. CHECK THE TCM AND WIRING

Turn the ignition off to the lock position.
Remove the Starter Relay.

CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear.


WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury or death.


NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition.


Install the Transmission Simulator, Miller tool #8333.
Ignition on, engine not running.
With the Transmission Simulator, turn the Pressure Switch selector switch to the UD position.
With the scan tool, monitor the UD Pressure Switch state while pressing the Pressure Switch Test button on the Transmission Simulator.

Did the state of the UD Pressure Switch change while pressing the Pressure Switch Test button?

Yes


No

11. CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR AN OPEN



Turn the ignition off to the lock position.
Disconnect the Transmission Simulator, Miller tool #8333.
Disconnect the TCM harness connector.
Measure the resistance of the (T29) UD Pressure Switch Sense circuit from the Transmission Solenoid/TRS Assembly harness connector and the appropriate terminal of the TCM harness connector.

Is the resistance above 5.0 ohms?

Yes


No

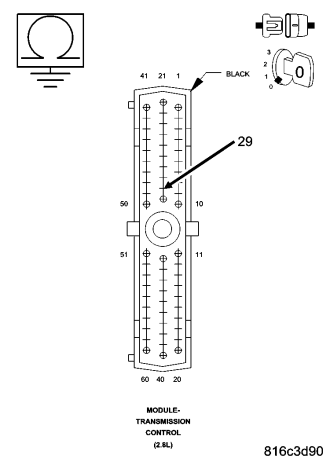

12. CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND



Measure the resistance between ground and the (T29) UD Pressure Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes


No

13. CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT



Disconnect the TCM harness connector.

NOTE: Make sure the Transmission Solenoid/TRS Assembly harness connector is disconnected.


Measure the resistance between the (T29) UD Pressure Switch Sense circuit and all other circuits in the Transmission Solenoid/TRS Assembly harness connector.

Is the resistance below 5.0 ohms between the (T29) UD Pressure Switch Sense circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?

Yes


No

14. WIGGLE TEST USING THE TRANSMISSION SIMULATOR

Perform the steps in the previous test while wiggling the wiring harness and connectors pertaining to the UD Pressure Switch.

Did the state of the UD Pressure Switch change while pressing the Pressure Switch Test button?

Yes


No

15. CHECK THE TRANSMISSION SOLENOID/TRS ASSEMBLY



Disconnect the Transmission Simulator and reconnect the Transmission Solenoid/TRS Assembly harness connector.
Disconnect the TCM harness connector.
Measure the resistance between ground and the (T29) UD Pressure Switch Sense circuit in the TCM harness connector.

Is the resistance below 5.0 ohms?

Yes


No

16. CHECK IF THE DTC RESETS

Reconnect all previously disconnected connectors.
With the scan tool, erase all transmission DTCs.
Test drive the vehicle. Using the DTC EVENT DATA recorded earlier, try to duplicate the conditions in which the DTC originally set.

Does the DTC P0876 reset?

Yes


No

17. CHECK FOR A CUT NO. 2 CHECK BALL

Remove the Valve Body per the Service Information.
Check the No. 2 check ball for cuts or damage.

Is the No. 2 check ball cut or damaged?

Yes


No

18. CHECK WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
Wiggle the wires while checking for shorted and open circuits.
With the scan tool, check the DTC EVENT DATA to help identify the conditions in which the DTC was set.

Were there any problems found?

Yes


No
