DUCT-DEFROSTER
REMOVAL
WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in an accidental airbag deployment and possible personal injury or death.
NOTE: Take the proper precautions to protect the front face of the instrument panel from cosmetic damage during this service procedure.
1. Remove the instrument panel and place it on a workbench (refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL).

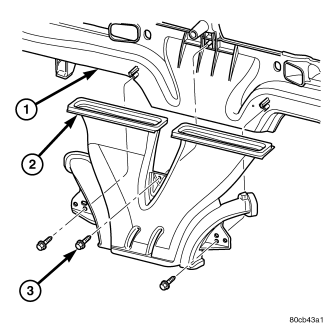

2. Remove the three screws (3) that secure the defroster duct (2) to the instrument panel (1) and remove the duct.
INSTALLATION
1. Position the defroster duct (2) into the instrument panel (1).
2. Install the three screws (3) that secure the defroster duct to the instrument panel. Tighten the screws to 2 N·m (17 in. lbs.).
3. Install the instrument panel (refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION).
