EXTERIOR HANDLE
REMOVAL
1. Remove the door glass (1). (Refer to 23 - BODY/DOOR - FRONT/DOOR GLASS - REMOVAL)

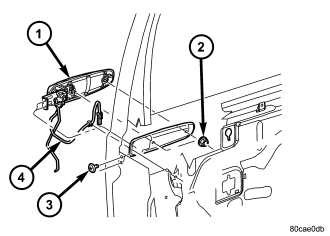

2. Disconnect the lock switch electrical connector (4), if equipped.
3. Disconnect the handle rod at the handle and the key cylinder rod at the latch.
4. Remove the screws (3).
5. Remove the nuts (2) and remove the handle (1).
INSTALLATION
1. Position the handle (1) on the door and slide fully toward the rear of the door.
2. Install the nuts (2) and tighten to 6 N·m (55 in. lbs.).
3. Install the screws (3) and tighten to 6 N·m (55 in. lbs.).
4. Connect the handle rod at the handle and the key cylinder rod at the latch.
5. Connect the lock switch electrical connector (4) , if equipped.
6. Install the door glass. (Refer to 23 - BODY/DOOR - FRONT/DOOR GLASS - INSTALLATION)
