GLASS RUN CHANNEL
REMOVAL

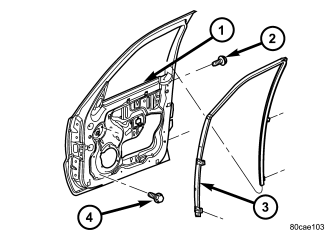

1. Remove the door glass. (Refer to 23 - BODY/DOOR - FRONT/DOOR GLASS - REMOVAL)
2. Remove the front (4) and rear bolts (2).
3. Peal the weatherstrip out of the door frame and remove the run channel (3) through the window opening (1).
INSTALLATION
1. Install the run channel (3) through the window opening (1) and into the door frame.
2. Install the front (4), rear bolts (2) and tighten to 9 N·m (80 in. lbs.).
3. Install the door glass. (Refer to 23 - BODY/DOOR - FRONT/DOOR GLASS - INSTALLATION)
