LOCK CYLINDER
REMOVAL
1. Remove the exterior handle (1). (Refer to 23 - BODY/DOOR - FRONT/EXTERIOR HANDLE - REMOVAL)

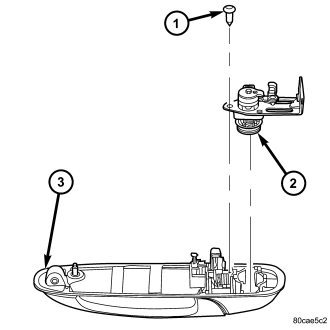

2. Remove the screw (1) and remove the lock cylinder (2).
INSTALLATION
1. Install the lock cylinder (2), the retaining screw (1) and tighten to 6 N·m (55 in. lbs.).
2. Install the exterior handle (1). (Refer to 23 - BODY/DOOR - FRONT/EXTERIOR HANDLE - INSTALLATION)
