LATCH STRIKER
REMOVAL

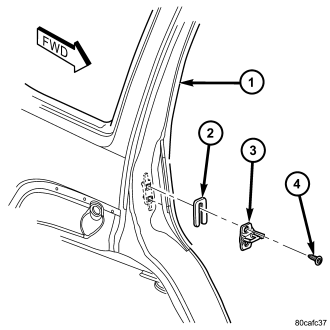

1. Remove the bolts (4).
2. Remove the latch striker (3) and the spacer (2), if equipped.
INSTALLATION
1. Install the striker (3) and spacer (2), if required.
2. Install the bolts (4) and tighten to 28 N·m (21 ft. lbs.).
3. Adjust the door as necessary. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)
