AIR CLEANER HOUSING
REMOVAL
1. Disconnect the negative battery cable. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CABLES - REMOVAL)
2. Disconnect the air pressure sensor and air temperature sensor electrical connectors.
3. Remove the air outlet hose from the air cleaner assembly.

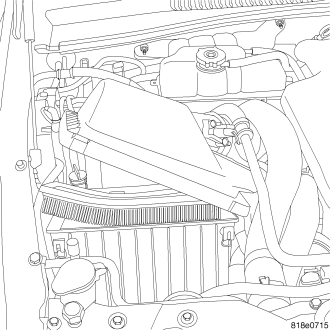

4. Pry up both spring clips from front of housing cover (spring clips retain cover to housing).
5. Release housing cover from locating tabs located on rear of housing, and remove cover.
6. Remove the rear lower housing to fender well fastener.
7. Remove the air inlet duct.
8. Pulling upward, remove the air cleaner housing.
INSTALLATION
1. Position the lower housing and attach the air inlet duct.
2. Install the lower housing to fender well fastener. Tighten fastener to 5 N·m (44 in. lbs.).
3. Install the air cleaner element.
4. Position housing cover into housing locating tabs.
5. Pry up spring clips and lock cover to housing.
6. Install the air outlet tube. Tighten clamp to 5 N·m (44 in. lbs.).
7. Connect the air pressure sensor wire and intake air temperature harness connectors.
8. Connect the negative battery cable. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CABLES - INSTALLATION)
