COWL GRILLE
REMOVAL

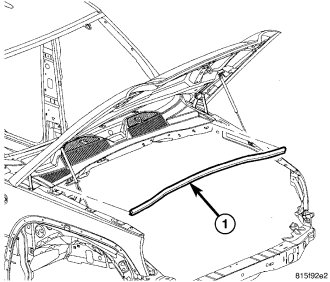

1. Remove the hood seal (1).
2. Remove the wiper arms. (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL)

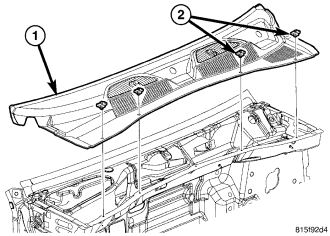

3. Remove the four plastic retainers (2) and remove the cowl grille (1).
INSTALLATION
1. Position the cowl grille (1) and engage the nine clips to the bottom of the windshield.
2. Install the four plastic retainers (2).
3. Install the wiper arms. (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION)
4. Install the hood seal (1).
