REAR WHEELHOUSE SPLASH SHIELD
REMOVAL
1. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
2. Remove the wheel.
3. Remove the two rivets connecting the shield to the side sill molding.
4. Remove the four rivets connecting the flare molding to the shield.

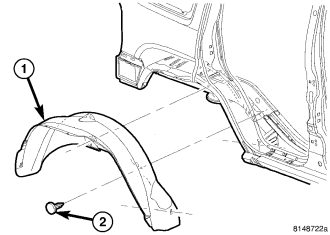

5. Remove the two push pin fasteners (2) and remove the shield (1).
INSTALLATION
1. Install the splash shield (1) and install the three push pin fasteners (2).
2. Position the rear flare molding and seat the clips attaching it to the body and the rear fascia. (Refer to 23 - BODY/EXTERIOR/WHEEL OPENING FLARE MOLDING - INSTALLATION)
3. Install five new rivets attaching the flare to the splash shield.
4. Install the wheel. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE - WHEEL MOUNTING)
