LATCH RELEASE CABLE
REMOVAL
1. Remove the battery. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL)
2. Remove the hood latch. (Refer to 23 - BODY/HOOD/LATCH - REMOVAL)
3. Remove the powertrain control module. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - REMOVAL)
4. Remove the hood release handle. (Refer to 23 - BODY/HOOD/LATCH RELEASE HANDLE - REMOVAL)

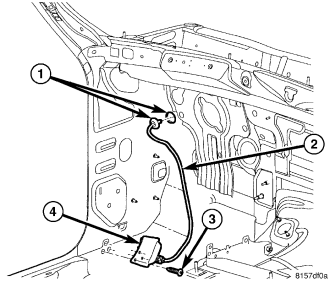

5. Disconnect the attaching clips and remove the cable from the inside.
INSTALLATION
1. Install the cable from the inside and attach the retaining clips.
2. Install the hood latch release handle. (Refer to 23 - BODY/HOOD/LATCH RELEASE HANDLE - INSTALLATION)
3. Install the powertrain control module. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - INSTALLATION)
4. Install the hood latch. (Refer to 23 - BODY/HOOD/LATCH - INSTALLATION)
5. Install the battery. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION)
