CARPETS AND FLOOR MATS
REMOVAL

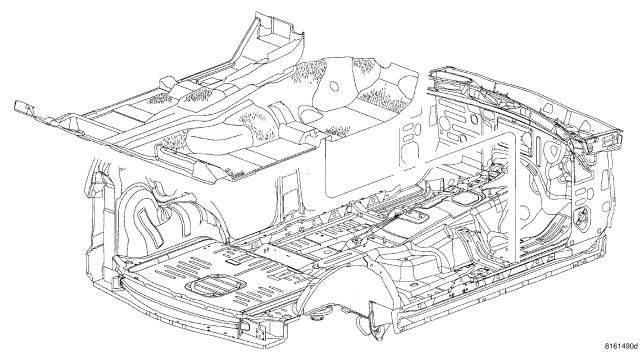

Front Carpet
1. Remove front seats. (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL)
2. Remove the floor console. (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL)
3. Remove the rear seats. (Refer to 23 - BODY/SEATS/SEAT - REAR - REMOVAL)
4. Remove the cowl trim panels. (Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - REMOVAL)
5. Remove the B-pillar lower trim. (Refer to 23 - BODY/INTERIOR/B-PILLAR LOWER TRIM - REMOVAL)
6. Remove the jack assembly.
7. Remove the carpet.

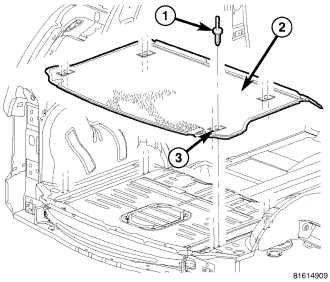

Rear Cargo Carpet
1. Remove the rivets (1) attaching the cargo hooks (3) to the floor.
2. Remove the carpet (2).
INSTALLATION
Front Carpet
1. Install the carpet.
2. Install the jack assembly.
3. Install the B-pillar lower trim. (Refer to 23 - BODY/INTERIOR/B-PILLAR LOWER TRIM - INSTALLATION)
4. Install the cowl trim panels. (Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - INSTALLATION)
5. Install the rear seats. (Refer to 23 - BODY/SEATS/SEAT - REAR - INSTALLATION)
6. Install the floor console. (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION)
7. Install the front seats. (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION)
Rear Cargo Carpet
1. Install the carpet and slide under the trim panels.
2. Install new rivets securing the carpet and cargo hooks to the floor.
