SWITCH-MIRROR
DIAGNOSIS AND TESTING - POWER MIRROR SWITCH
1. Remove power mirror switch (Refer to 8 - ELECTRICAL/POWER MIRRORS/POWER MIRROR SWITCH - REMOVAL).
2. Disconnect wiring harness connector from switch.
3. Using a ohmmeter, test for continuity between the terminals of the switch.
4. If results shown in the table are not obtained, replace the switch.
| SWITCH POSITION | CONTINUITY BETWEEN |
| MIRROR SELECT SWITCH IN "LEFT" POSITION | |
| UP | 5 AND 2 |
| 3 AND 6 | |
| DOWN | 5 AND 6 |
| 3 AND 2 | |
| LEFT | 5 AND 6 |
| 3 AND 1 | |
| RIGHT | 5 AND 1 |
| 3 AND 6 | |
| MIRROR SELECT SWITCH IN "RIGHT" POSITION | |
| UP | 5 AND 9 |
| 3 AND 6 | |
| DOWN | 5 AND 6 |
| 3 AND 9 | |
| LEFT | 5 AND 6 |
| 3 AND 10 | |
| RIGHT | 5 AND 10 |
| 3 AND 6 | |
REMOVAL
1. Disconnect and isolate the battery negative cable.

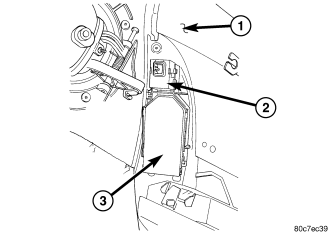

2. Remove door trim panel (1) (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - REMOVAL).
3. Disconnect wire harness connector from switch (3).
4. Remove switch from door trim panel.
INSTALLATION
1. Install switch to door trim panel (1).
2. Connect wire harness connector to switch (3).
3. Install door trim panel (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION).
4. Connect battery negative cable.
