INSTALLATION
GAS
CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
NOTE: The pulley is marked front for installation.
1. Replace pulley if bent, cracked, or loose.

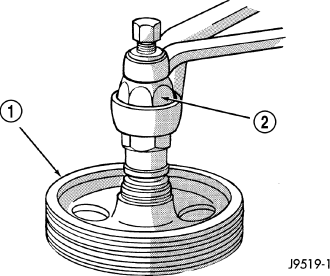

2. Install pulley (1) on pump with Installer C-4063-B (2) or equivalent installer . The pulley must be flush with the end of the shaft. Ensure the tool and pulley are aligned with the pump shaft.
3. Install pump assembly. (Refer to 19 - STEERING/PUMP - INSTALLATION)
4. With Serpentine Belt, run engine until warm (5 min.) and note any belt chirp. If chirp exists, move pulley outward approximately 0.5 mm (0.020 in.). If noise increases, press on 1.0 mm (0.040 in.). Be careful that pulley does not contact mounting bolts.
DIESEL
1. Install the pulley to the pump shaft.
2. Install the three bolt securing the pulley to the pump .
3. Install the serpentine belt.
4. Install the fan shroud.
5. Install the engine cooling fan.
