REMOVAL
GAS
CAUTION: On vehicles equipped with the pressed on pulley, Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
1. Remove pump assembly. (Refer to 19 - STEERING/PUMP - REMOVAL).

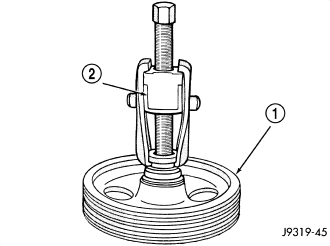

2. Remove pulley (1) from pump with Puller C-4333 (2) or equivalent puller .

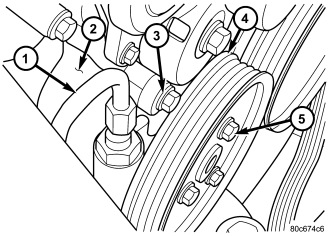

DIESEL
1. Remove the engine cooling fan.
2. Remove the fan shroud.
3. Remove the serpentine drive belt.
4. Remove the three bolts securing the pulley to the pump .
