JOUNCE BUMPER
REMOVAL
1. Remove the shock (Refer to 2 - SUSPENSION/REAR/SHOCK - REMOVAL).
2. Remove the coil spring (Refer to 2 - SUSPENSION/REAR/SPRING - REMOVAL).

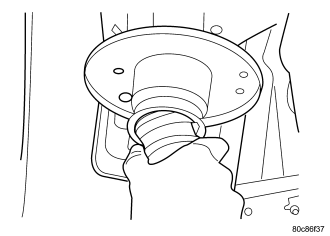

3. Pull the jounce bumper downwards to remove.
INSTALLATION
1. Install the jounce bumper into the mount by twisting the bumper into place .
2. Install the coil spring (Refer to 2 - SUSPENSION/REAR/SPRING - INSTALLATION).
3. Install the shock (Refer to 2 - SUSPENSION/REAR/SHOCK - INSTALLATION).
