INSTALLATION
BULB
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
NOTE: Side repeater lamps are used only on vehicles manufactured for certain markets where these lamps are required.

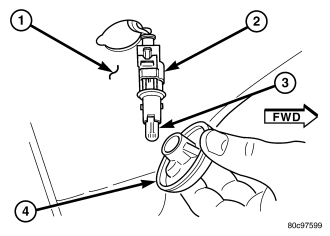

1. Align the base of the bulb (3) with the repeater lamp socket (2).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the socket and bulb with the keyed opening on the back of the repeater lamp lens (4).
4. Insert the socket and bulb straight into the lens until the socket is firmly seated
5. Rotate the socket clockwise in the lens about 30 degrees to lock it into place.
6. Reinstall the repeater lamp unit onto the front fender panel (1). (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/REPEATER LAMP UNIT - INSTALLATION).
7. Reconnect the battery negative cable.
LAMP
NOTE: Side repeater lamps are used only on vehicles manufactured for certain markets where these lamps are required.

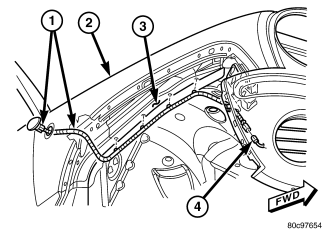

1. Position the repeater lamp unit (1) to the front fender panel (2).
2. Reconnect the wire harness connector to the lamp socket.
3. Position the lamp unit into the mounting hole in the front fender panel. Be certain that the clearance notch on the edge of the lamp lens is oriented towards the bottom.
4. Using hand pressure, press on the lamp lens firmly and evenly until the snap features of the lamp are fully engaged in the mounting hole of the front fender panel.
5. Reconnect the battery negative cable.
