REMOVAL
BULB
NOTE: Side repeater lamps are used only on vehicles manufactured for certain markets where these lamps are required.
1. Disconnect and isolate the battery negative cable.
2. Remove the repeater lamp unit from the front fender panel (1). (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/REPEATER LAMP UNIT - REMOVAL).

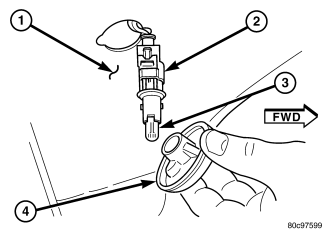

3. Rotate the repeater lamp socket (2) in the lamp lens (4) counterclockwise about 30 degrees to unlock it.
4. Pull the socket and bulb (3) straight out of the keyed opening in the lamp lens.
5. Pull the base of the bulb straight out of the lamp socket.
LAMP
NOTE: Side repeater lamps are used only on vehicles manufactured for certain markets where these lamps are required.
1. Disconnect and isolate the battery negative cable.

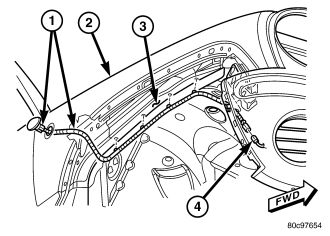

2. Using a trim stick or another suitable wide flat-bladed tool, carefully pry at the clearance notch in the lower edge of the repeater lamp lens (1) to disengage the snap features of the lens from the mounting hole in the front fender panel (2).
3. Pull the lamp unit out from the front fender panel far enough to access and disconnect the wire harness connector from the lamp socket.
4. Remove the lamp unit from the front fender panel.
