INSTALLATION
FRONT

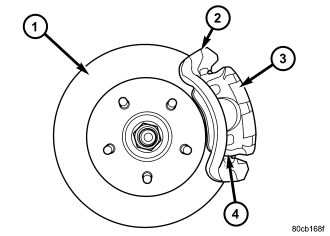

1. Install the disc brake rotor (1) to the hub.
2. Install the caliper mounting adapter (2) . (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - INSTALLATION).
3. Install the tire and wheel assembly. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
REAR

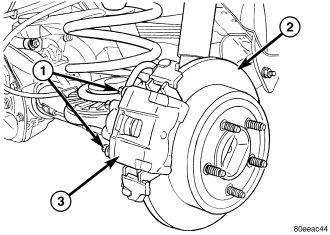

1. Install the rotor (2) to the axleshaft.
2. Install the disc brake caliper (3) and pads , (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION).
3. Install the tire and wheel assembly (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
4. Lower the vehicle.
