SEAT BACK RECLINER - FRONT
REMOVAL
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Remove the seat back. (Refer to 23 - BODY/SEATS/SEAT BACK - FRONT - REMOVAL)

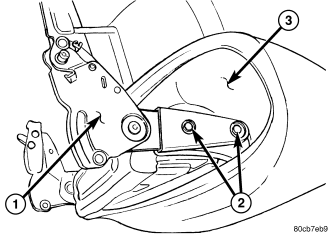

2. Position the seat back cover out of the way and remove the bolts.
3. Remove the recliners from the seat back frame.
INSTALLATION
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Install the recliners onto the seat back.
2. Position the seat back cover aside and install the recliner bolts.
3. Tighten the bolts to 28 N·m (21 ft. lbs.).
4. Install the seat back. (Refer to 23 - BODY/SEATS/SEAT BACK - FRONT - INSTALLATION)
