SEAT - REAR

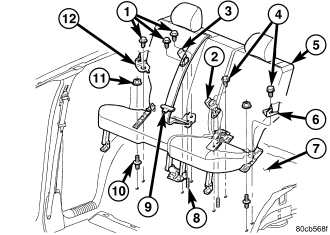

REMOVAL
1. Remove the outer seat belt anchors. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - REMOVAL)
2. Remove the inner seat belt buckles. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE - REMOVAL)
3. Remove the center seat belt anchor. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - REMOVAL)
4. Remove the remaining rear seat fasteners.
5. Remove the front bolts.
6. Fold down the seat backs and remove the seat assembly through the rear door.

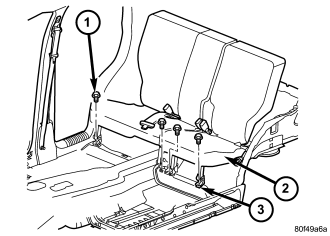

INSTALLATION
1. Install the seat assembly and position over the studs.
2. Open the seat back and engage the latches onto the latch strikers.
3. Install the rear outboard nuts and tighten to 43 N·m (32 ft. lbs.).
4. Install the outer seat belt anchors. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - INSTALLATION)
5. Install the inner seat belt buckles. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE - INSTALLATION)
6. Install the center seat belt anchor. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT & RETRACTOR - INSTALLATION)
7. Install the front outer seat cushion leg bolts and tighten to 35 N·m (26 ft. lbs.)
