GUIDE-TROUGH ASSEMBLY
REMOVAL
1. Remove trough. (Refer to 23 - BODY/SUNROOF/TROUGH - REMOVAL)
2. Disconnect the guide link (2).

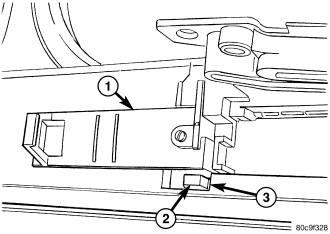

3. Slide trough guide (1) forward and disengage the sliders (2) through the notches (3) in the guide channels.
INSTALLATION
1. Install the trough guide (1) and engage the sliders (2) into the guide channels through the small notch (3) in track.
2. Connect the guide link (2).
3. Install the trough. (Refer to 23 - BODY/SUNROOF/TROUGH - INSTALLATION)
