INSTALLATION
FRONT

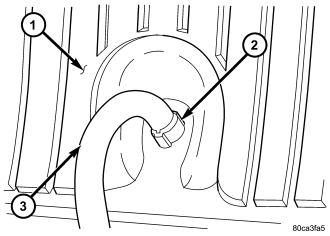

1. From the top of the cowl plenum cover/grille panel, position the nipple end of the front washer nozzle (2) through the mounting hole and engage the anti-rotation tab of the nipple into the anti-rotation notch in the mounting hole.
2. Push firmly and evenly on the top of the front washer nozzle until the integral latch features lock into place on the underside of the cowl plenum cover/grille panel (1).
3. From the underside of the cowl grille cover, reconnect the washer hose (3) to the barbed nipple of the front washer nozzle.
4. Reinstall the washer hose for the front washer nozzle into its routing clips on the underside of the cowl plenum cover/grille panel.
5. Reinstall the cowl plenum cover/grille panel over the cowl plenum. (Refer to 23 - BODY/EXTERIOR/COWL GRILLE - INSTALLATION).
6. Reinstall both front wiper arms onto the wiper pivots. (Refer to 8 - ELECTRICAL/FRONT WIPERS/WASHERS/FRONT WIPER ARM - INSTALLATION).
7. Close and latch the hood.
REAR
NOTE: The rear washer nozzle latch feature is a one time component, and will be damaged if the nozzle is removed from its mounting hole for service. If removed from its mounting hole for any reason, the rear washer nozzle must be replaced with a new unit.

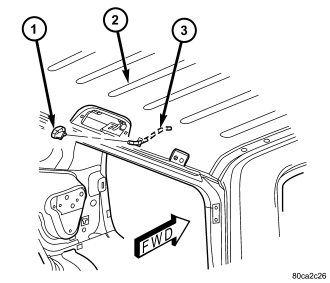

1. Position the new rear washer nozzle (1) to the mounting hole in the roof panel (2). Be certain that a new rubber gasket is in position on the back of the nozzle.
2. Reconnect the headliner washer hose (3) to the barbed nipple on the back of the rear washer nozzle.
3. Insert the rear washer nozzle and hose into the mounting hole in the roof panel and align the nozzle with the hole.
4. Engage the tab at the top of the nozzle behind the sheet metal at the top of the roof panel mounting hole.
5. Using hand pressure, press firmly and evenly on the hood of the rear washer nozzle until the lower latch feature snaps into place behind the sheet metal at the bottom of the roof panel mounting hole.
