SHOES
- DESCRIPTION
- OPERATION
- REMOVAL
- CLEANING - REAR DRUM IN HAT BRAKE
- INSPECTION - REAR DRUM IN HAT BRAKE
- INSTALLATION
DESCRIPTION
Drum in hat park brakes are dual shoe (2&4), internal expanding units with an automatic self adjusting mechanism.
OPERATION
When the parking brake pedal is pulled the brake cable pulls the brake shoes outward against the brake drum. When the brake pedal is released the return springs attached to the brake shoes pull the shoes back to their original position.
REMOVAL
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.
3. Remove the disc brake caliper adapter (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - REMOVAL).
4. Remove the disc brake rotor, (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL).

5. Remove the wheel speed sensor (3) (Refer to 5 - BRAKES/ELECTRICAL/REAR WHEEL SPEED SENSOR - REMOVAL).

6. Remove the center floor console (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL).
7. Lock out the park brake system at the lever using a suitable tool (1) and pulling upward on the brake cable (3) (Refer to 5 - BRAKES/PARKING BRAKE - STANDARD PROCEDURE).

8. Remove the rear parking brake cables (2) from the equalizer.

9. Remove the parking brake cable (1) from the brake shoe lever (2) at the axle.

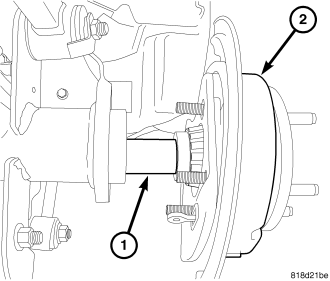

10. Remove the axle shaft (1) (Refer to 3 - DIFFERENTIAL & DRIVELINE/REAR AXLE - 198RBI/AXLE SHAFTS - REMOVAL).

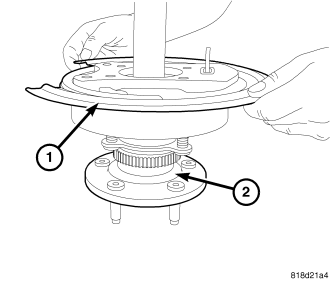

11. Tap the seal plate from the brake support (1) on the axle shaft (2).
12. Remove the support plate with the brake shoes (1) from the axle shaft (1).

13. Disassemble the rear park brake shoes.
CLEANING - REAR DRUM IN HAT BRAKE
Clean the individual brake components, including the support plate exterior, with a water dampened cloth or with brake cleaner. Do not use any other cleaning agents. Remove light rust and scale from the brake shoe contact pads on the support plate with fine sandpaper.
INSPECTION - REAR DRUM IN HAT BRAKE
As a general rule, riveted brake shoes should be replaced when worn to within 0.78 mm (1/32 in.) of the rivet heads. Bonded lining should be replaced when worn to a thickness of 1.6 mm (1/16 in.).
Examine the lining contact pattern to determine if the shoes are bent or the drum is tapered. The lining should exhibit contact across its entire width. Shoes exhibiting contact only on one side should be replaced and the drum checked for runout or taper.

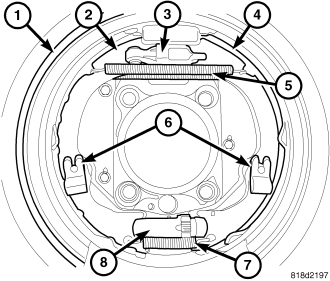

Inspect the adjuster screw assembly (8). Replace the assembly if the star wheel or threads are damaged, or the components are severely rusted or corroded.
Discard the brake springs (5&7) and retainer components (6) if worn, distorted or collapsed. Also replace the springs if a brake drag condition had occurred. Overheating will distort and weaken the springs.
Inspect the brake shoe contact pads on the support plate (1), replace the support plate if any of the pads are worn or rusted through. Also replace the plate if it is bent or distorted.
INSTALLATION
NOTE: After parking brake lining replacement, it is recommended that the parking brake system be conditioned prior to use. This is done by making one stop from 25 mph on dry pavement or concrete using light to moderate force on the parking brake lever.

1. Reassemble the rear park brake shoes.

2. Install the support plate (1) on the axle shaft (2).

3. Install the axle shaft (1) to the axle housing. (Refer to 3 - DIFFERENTIAL & DRIVELINE/REAR AXLE - 198RBI/AXLE SHAFTS - INSTALLATION).

4. Reconnect the brake cable (1) to the park brake shoe lever (2) behind the support plate.

5. Install the rear wheel speed sensor (3). (Refer to 5 - BRAKES/ELECTRICAL/REAR WHEEL SPEED SENSOR - INSTALLATION).
6. Adjust the rear brake shoes (Refer to 5 - BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS).
7. Install the disc brake rotor (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION).
8. Install the disc brake caliper adapter. (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - INSTALLATION).
9. Install the tire and wheel assembly (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE).
10. Lower the vehicle.

11. Install the rear park brake cables (2) at the equalizer.

12. Remove the lockout (1) on the front park brake lever.
13. Check the operation of the park brake system.
14. Install the center floor console (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).
