REMOVAL

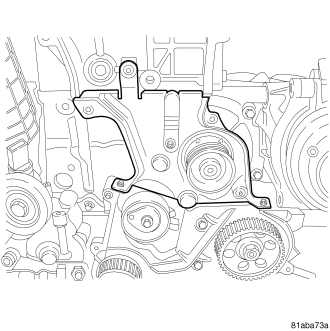

REMOVAL - TIMING BELT INNER COVER
1. Disconnect the battery.
2. Remove the accessory drive belt.
3. Remove the upper and lower outer front covers. (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL)
4. Remove the timing belt. (Refer to 9 - ENGINE/VALVE TIMING/TMNG BELT/CHAIN TENSIONER&PULLEY - REMOVAL)
REMOVAL - UPPER AND LOWER TIMING BELT OUTER COVERS
1. Disconnect negative battery cable.

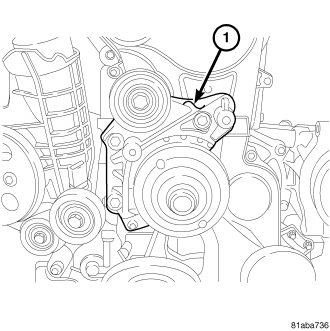

2. Disconnect the CMP sensor (1).
3. Remove the upper front cover (2).
4. Remove the accessory drive belt.
5. Remove the front engine lift bracket.

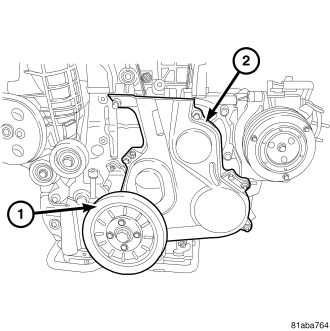

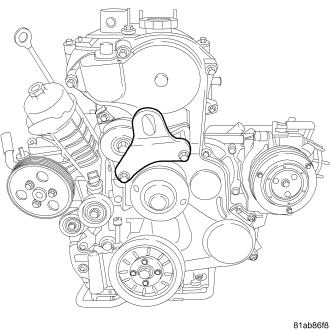

6. Remove the accessory drive idler pulley bracket (1).
7. Remove the crankshaft damper (1).
8. Remove the lower front cover (2).
