REMOVAL
BULB
1. Disconnect and isolate the battery negative cable.

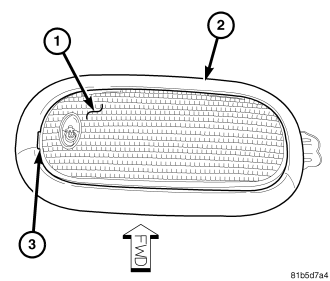

2. Insert the tip of a small flat-bladed screwdriver into the notch on the right side of the dome lamp between the lens (1) and the lamp housing (2).
3. Gently pry the notched edge of the lens downward until it unsnaps from the housing.
4. While holding the lamp housing bezel (3) flush with the rear speaker enclosure, swing the notched end of the lens downward far enough to access the bulb (4).
NOTE: If the lamp housing is lowered from the mounting hole, the lamp MUST be reinstalled as per the installation procedure. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERIOR/DOME LAMP - INSTALLATION).
5. Carefully unsnap the bulb from the two bulb holders within the lamp housing.
LAMP
1. Disconnect and isolate the battery negative cable.
2. Insert the tip of a small flat bladed screwdriver into the notch (3) between the lens (1) and the housing (2) on the right side of the dome lamp unit.
3. Gently pry the end of the lens downward until it unsnaps from the housing.
4. Swing the lens downward until it is perpendicular to the housing.
5. Pull the housing downward far enough to disengage it from the rear speaker enclosure.
6. Pull the lamp away from the mounting hole in the speaker enclosure far enough to access and disconnect the wire harness connector from the connector receptacle on the back of the lamp housing.
7. Remove the lamp from the vehicle.
