HANDLE - EXTERIOR DOOR
REMOVAL
1. Remove the carrier plate (6), (Refer to 23 - BODY/DOORS - REAR/CARRIER PLATE - REMOVAL)

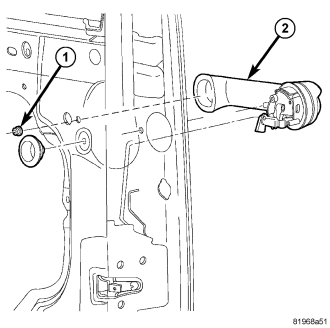

2. Remove the nuts (1) and remove the handle (2).
INSTALLATION
1. Install the handle (2) and install the nuts (1).
2. Tighten the nuts to 4.5 N·m (40 in. lbs.).
3. Install the carrier plate (6), (Refer to 23 - BODY/DOORS - REAR/CARRIER PLATE - INSTALLATION).
