DAMPER-VIBRATION
REMOVAL
1. Disconnect negative battery cable.
2. Remove viscous cooling fan and shrowd (Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - REMOVAL).
3. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).

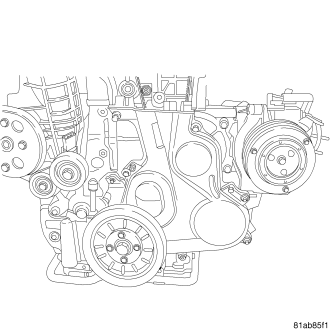

4. Remove vibration damper retaining bolt and damper.
INSTALLATION
1. Install vibration damper and retaining bolts. Torque the bolt to 32 N·m. (23 ft.lbs.).
2. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
3. Install viscous fan and fan shrowd (Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - INSTALLATION).
4. Connect negative battery cable.
