MOUNT-LEFT ENGINE
REMOVAL

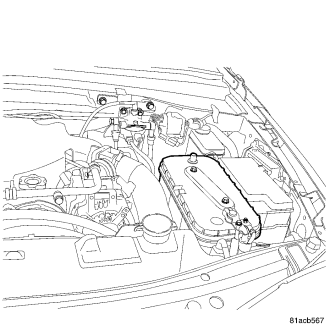

1. Disconnect the negative battery cable. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CABLES - REMOVAL)
2. Install the engine lift fixture.
3. Support the engine with the lift fixture.
4. Remove the left front tire. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE)
5. Remove the inner fender. (Refer to 23 - BODY/EXTERIOR/REAR WHEELHOUSE SPLASH SHIELD - REMOVAL)

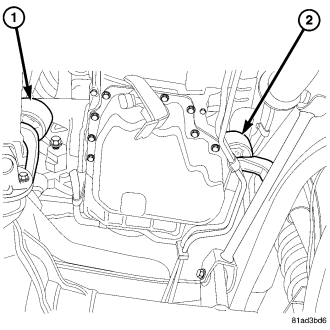

6. Remove the engine mount.
INSTALLATION
1. Position the engine mount and hand tighten the retaining bolts.
2. Lower the engine mount and through bolts into the engine mount support.
3. Lower the vehicle.
4. Install the left upper engine mount bolt.Tighten bolt to 54 N·m (40 lbs. ft.)
5. Raise and support the vehicle.
6. Tighten remaining mount to engine bolts to 54 N·m (40 lbs. ft.)
7. Tighten engine mount through bolts to 54 N·m (40 lbs. ft.)
8. Lower the vehicle.
9. Install the left inner fender. (Refer to 23 - BODY/EXTERIOR/REAR WHEELHOUSE SPLASH SHIELD - INSTALLATION)
10. Install the left front wheel. (Refer to 22 - TIRES/WHEELS/WHEELS - STANDARD PROCEDURE)
11. Remove the engine support.
12. Connect the negative battery cable. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/CABLES - INSTALLATION)
