PUMP-INTERNAL VACUUM
DESCRIPTION

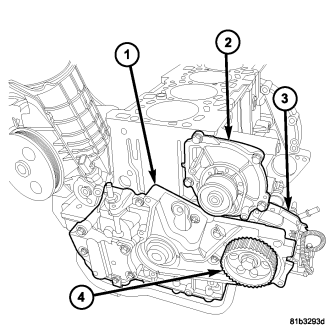

The diesel engine uses a internal vacuum pump. This vacuum pump is mounted in the engine front cover. The vacuum pump is driven by a sprocket on the crankshaft.
REMOVAL

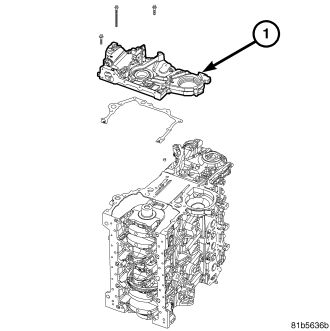

1. Remove the front cover (1). (Refer to 9 - ENGINE/ENGINE BLOCK/ENGINE COVER - REMOVAL)
2. Remove the vacuum pump from the front cover.
INSTALLATION
1. Install the vacuum pump into the front cover.
2. Install the front cover. (Refer to 9 - ENGINE/ENGINE BLOCK/ENGINE COVER - INSTALLATION)
