HOOD
REMOVAL
1. Raise hood.

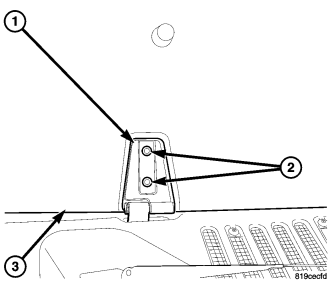

2. Using a grease pencil or equivalent, mark location of hood hinges (1) on hood (3) to aid installation.
3. Remove bolts (2) attaching hinges to hood.
4. With the aid of a helper, remove hood (3) from vehicle.
INSTALLATION
1. Position hood (3) on hinges (1).
2. Install bolts (2) finger-tight.
3. Align hinges with installation reference marks made previously and tighten bolts to 26 N·m (19 ft. lbs.).
4. If required, adjust the hood to the correct position (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS).
