MOLDING - WINDSHIELD
REMOVAL
1. Remove the upper A-pillar trim (2), (Refer to 23 - BODY/INTERIOR/A-PILLAR TRIM - REMOVAL).

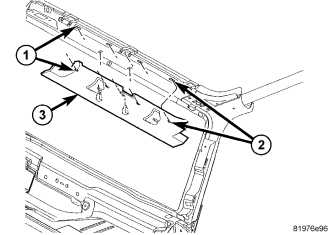

2. Using a trim stick C-4755 or equivalent, separate the retaining clips (1) and (2) and remove the windshield molding (3).
INSTALLATION
1. Position the windshield molding (3) onto the windshield header and seat the clips (1) and (2) fully.
2. Install the upper A-pillar trim (2), (Refer to 23 - BODY/INTERIOR/A-PILLAR TRIM - INSTALLATION)
