REMOVAL
LAMP
1. Disconnect and isolate the battery negative cable.

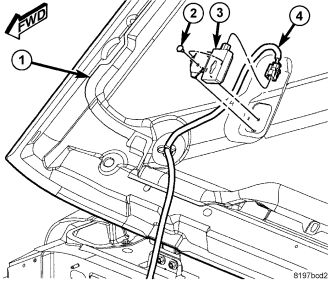

2. Disconnect the headlamp and dash wire harness connector (4) from the underhood lamp (3) connector receptacle.
3. Remove the bulb from the underhood lamp. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/UNDERHOOD LAMP BULB - REMOVAL).
4. Remove the push pin type blind rivet (2) from within the lamp housing that secures the underhood lamp mounting bracket to the inner hood panel reinforcement (1).
5. Remove the underhood lamp and bracket from the inner hood panel as a unit.
BULB
1. Disconnect and isolate the battery negative cable.

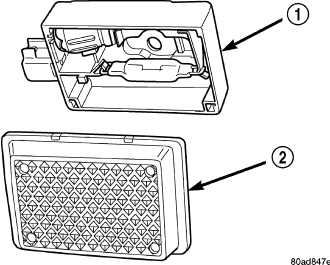

2. Insert a small flat bladed tool in the access slot between the underhood lamp housing (1) and the lamp lens (2).
3. Gently pry the lens until it unsnaps from the lamp housing.

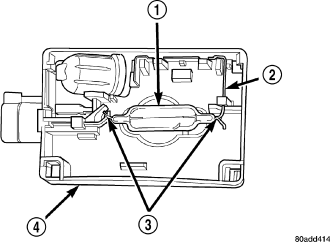

4. Depress the bulb holder (2) inward far enough to disengage the terminal loops (3) of the bulb (1) and remove the bulb from the lamp housing (4).
