ANTENNA-NAVIGATION
REMOVAL
1. Disconnect the battery negative cable.
2. Remove the center bezel.
3. Remove the radio. (Refer to 8 - ELECTRICAL/AUDIO/RADIO - REMOVAL).

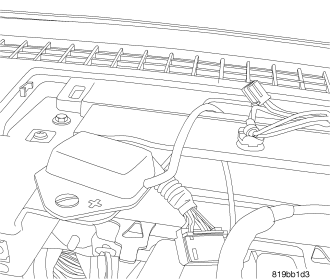

4. Remove the push pins securing the GPS antenna.
5. Remove the GPS antenna.
INSTALLATION
1. Install the GPS antenna.
2. Secure the GPS antenna using the push pins.
3. Install the radio. (Refer to 8 - ELECTRICAL/AUDIO/RADIO - INSTALLATION).
4. Install the center bezel.
5. Connect the battery negative cable.
