SEAT - REAR
DESCRIPTION

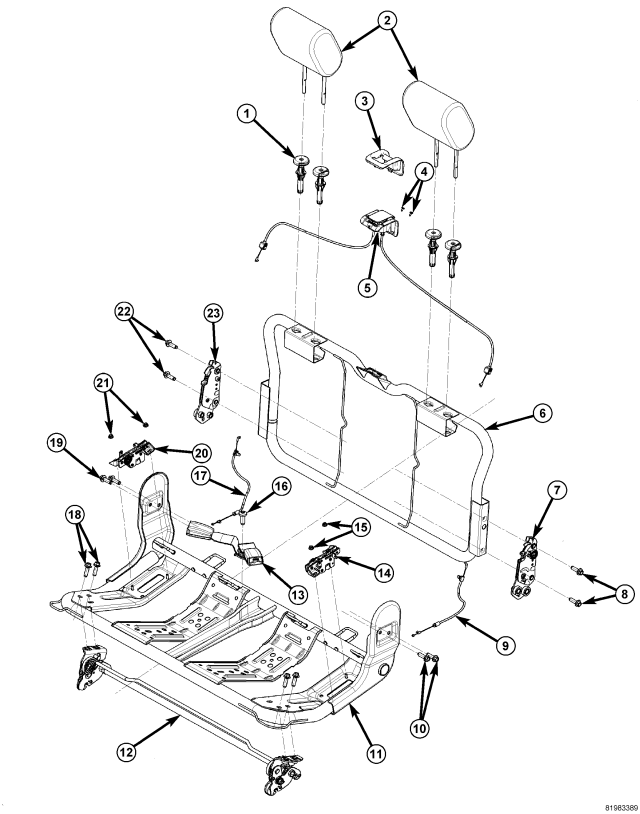

| 2 DOOR REAR |
| 1 - HEADREST SLEEVES |
| 2 - HEADRESTS |
| 3 - RELEASE HANDLE BEZEL |
| 4 - RELEASE HANDLE SCREWS |
| 5 - RELEASE HANDLE |
| 6 - SEAT BACK FRAME |
| 7 - SEAT BACK LATCH |
| 8 - SEAT BACK LATCH BOLTS 45 N·m (33 ft. lbs.) |
| 9 - CABLE – BACK LATCH TO REAR FLOOR LATCH |
| 10 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N·m (37 ft. lbs.) |
| 11 - SEAT CUSHION FRAME |
| 12 - FRONT LATCH |
| 13 - CENTER BELT BUCKLES |
| 14 - REAR LATCH – LEFT HAND |
| 15 - REAR LATCH NUTS 10 N·m (90 in. lbs.) |
| 16 - CENTER BELT BUCKLE BOLT 55 N·m (40.5 ft. lbs.) |
| 17 - CABLE – BACK LATCH TO REAR FLOOR LATCH |
| 18 - FRONT LATCH CUSHION FRAME BOLTS 45 N·m (33 ft. lbs.) |
| 19 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N·m (37 ft. lbs.) |
| 20 - REAR LATCH – RIGHT HAND |
| 21 - REAR LATCH NUTS 10 N·m (90 in. lbs.) |
| 22 - SEAT BACK LATCH BOLTS 45 N·m (33 ft. lbs.) |
| 23 - SEAT BACK LATCH |

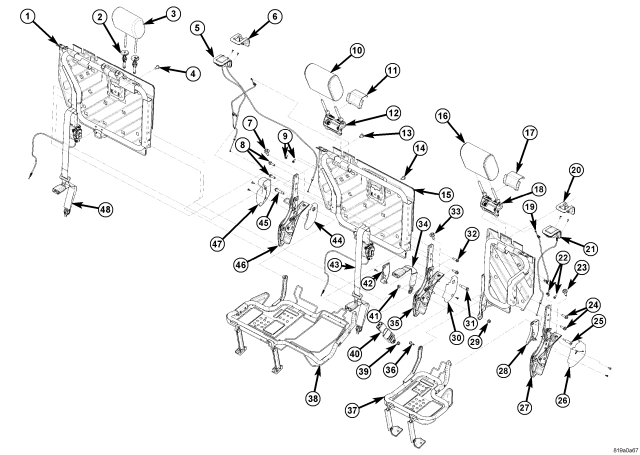

| 4 DOOR REAR |
| 1 - 60% SEAT BACK FRAME - EXPORT |
25 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.) |
| 2 - EXPORT HEADREST SLEEVES |
26 - OUTER LATCH COVER |
| 3 - HEADREST - EXPORT |
27 - OUTBOARD LATCH |
| 4 - RETRACTOR SCREW 55 N·m (40.5 ft. lbs.) |
28 - INNER LATCH COVER |
| 5 - RELEASE HANDLE |
29 - 40% INNER SEAT BACK PIVOT NUT 25 N·m (18.5 ft. lbs.) |
| 6 - RELEASE HANDLE BEZEL |
30 - INNER LATCH COVER |
| 7 - OUTBOARD LATCH FLOOR BOLTS 25 N·m (18.5 ft. lbs.) |
31 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.) |
| 8 - LATCH TO BACK FRAME BOLTS 45 N·m (33 ft. lbs.) |
32 - LATCH TO BACK FRAME BOLTS 45 N·m (33 ft. lbs.) |
| 9 - HEADREST BOLTS 8 N·m (71 in. lbs.) |
33 - INNER LATCH FLOOR BOLTS 25 N·m (18.5 ft. lbs.) |
| 10 - HEADREST |
34 - 60% INBOARD BUCKLE |
| 11 - HEADREST BEZEL |
35 - INBOARD LATCH |
| 12 - HEADREST BRACKET AND HINGE |
36 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.) |
| 13 - RETRACTOR SCREW 55 N·m (40.5 ft. lbs.) |
37 - 40% SEAT CUSHION FRAME |
| 14 - RETRACTOR SCREW 55 N·m (40.5 ft. lbs.) |
38 - 60% SEAT CUSHION FRAME |
| 15 - 60% SEAT BACK FRAME |
39 - BELT BUCKLE NUT 45 N·m (33 ft. lbs.) |
| 16 - HEADREST |
40 - 40% INBOARD BUCKLE |
| 17 - HEADREST BEZEL |
41 - BELT BUCKLE NUT 45 N·m (33 ft. lbs.) |
| 18 - HEADREST BRACKET AND HINGE |
42 - INNER LATCH COVER |
| 19 - HEADREST RELEASE CABLE |
43 - SEAT BELT RETRACTOR |
| 20 - RELEASE HANDLE BEZEL |
44 - INNER LATCH COVER |
| 21 - RELEASE HANDLE |
45 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.) |
| 22 - HEADREST BOLTS 8 N·m (71 in. lbs.) |
46 - OUTBOARD LATCH |
| 23 - OUTBOARD LATCH FLOOR BOLTS 25 N·m (18.5 ft. lbs.) |
47 - OUTER LATCH COVER |
| 24 - LATCH TO BACK FRAME BOLTS 45 N·m (33 ft. lbs.) |
48 - SEAT BELT RETRACTOR |
REMOVAL

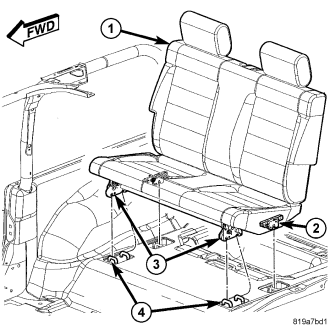

Two Door
1. Remove the rear subwoofer (if equipped), (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - REMOVAL).
2. Lift the seat back release lever and fold seat back forward and release the rear latches (2).
3. Slowly flip the entire seat (1) forward.
4. Press down on release bar on each side to release the front latches (3), and pull seat out and away from lower bracket (4).
5. Remove seat from the vehicle.

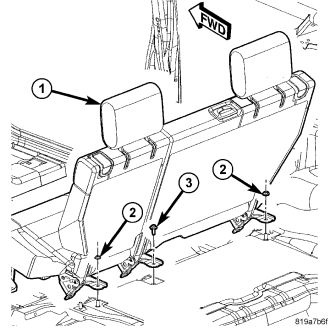

Four Door
1. Remove the four front leg bolts (1).
2. Remove the front rear bracket bolts (2).
3. Fold the seat backs (3) into the down position.
4. Remove the center bracket bolt (3).
5. Remove the outer bracket nuts (2) and remove the seat assembly through the tail gate.
INSTALLATION
Two Door
1. Position the seat assembly into the vehicle and lock the rear of the front latches (3) into rear loop of the lower brackets (4).
2. Lift the seat upright and lock the front of the front latches (3) into the front loop of the lower brackets (4).
3. Position the seat assembly down and secure the rear latches (2).
4. Lift the seat back (1) into the upright position to lock the rear latches (2).

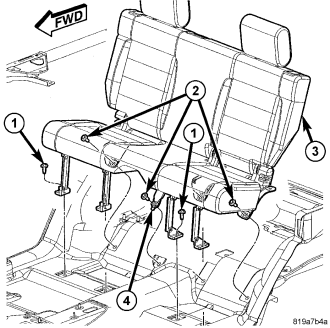

Four Door
1. Position the seat assembly into the vehicle and over the rear studs.
2. Install the nuts (2) and tighten to 85 N·m (63 ft. lbs.).
3. Install the bolt (3) and tighten to 61 N·m (45 ft. lbs.).
4. Install the rear bracket front screws (2) and tighten to 61 N·m (45 ft. lbs.).
5. Install the front bracket screws (1) and tighten to 61 N·m (45 ft. lbs.).
6. Install the center belt buckle (4) and make sure the tab is lined up with the slot in the plate.
7. Install the buckle bolt and tighten to 61 N·m (45 ft. lbs.).
