REMOVAL
FRONT WHEEL STUD
CAUTION: Do not use a hammer to remove wheel studs.
1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove brake caliper, caliper adapter and rotor, (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL).

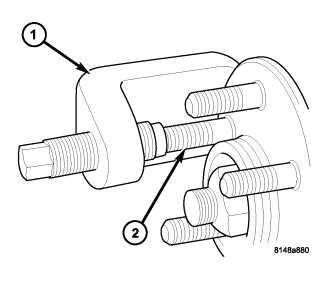

4. Remove stud (2) from hub with Remover C-4150-A (1).
REAR WHEEL STUD
CAUTION: Do not use a hammer to remove wheel studs.
1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove brake caliper and rotor, (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL).

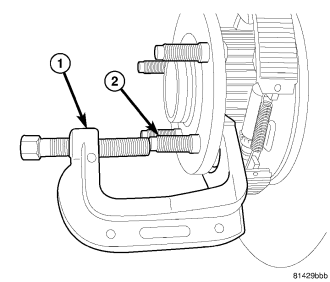

4. Remove stud (2) from hub with Remover 8677 (1).

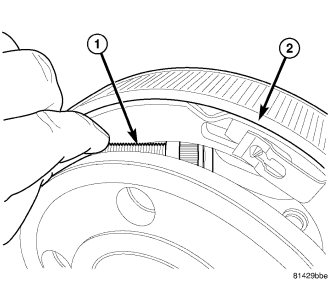

5. Remove the stud (1) from between the hub/bearing and brake shoes (2)
