HINGE
REMOVAL
NOTE: It is not necessary to remove the tailgate to replace the hinges if they are replaced one at a time.
NOTE: A suitable body sealant should be used when removing or moving the hinges.

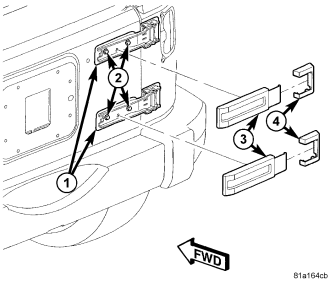

1. Using a trim stick C-4755 or equivalent, separate the hinge covers (3 and 4) from the hinges.
2. Using a grease pencil or equivalent, mark the position of the hinge (1) on the tailgate.
3. Remove the bolts (2) attaching the hinge to the tailgate.

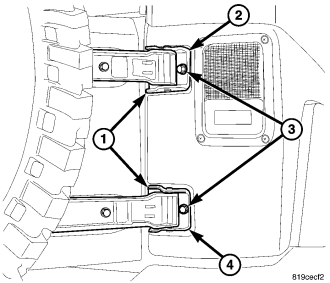

4. Remove the bolts (1 and 2) attaching the hinge to the body.
INSTALLATION
NOTE: A suitable body sealant should be used when removing or moving the hinges.
1. Align the hinges to the door using the reference marks made during the removal procedure and install the body bolts (1 and 2).
2. Install the bolts (2) and tighten to 20 N·m (15 ft. lbs.).
3. Tighten the body bolts to 26 N·m (19 ft. lbs.).
4. Adjust the tail gate if necessary, (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS).
