DISASSEMBLY

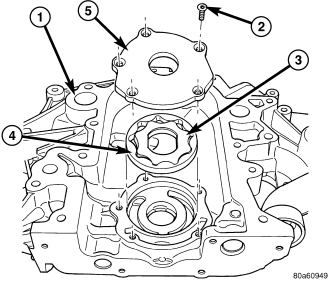

1. Remove oil pump cover screws, and lift off cover .
2. Remove oil pump rotors .
3. Clean and inspect oil pump components.
(Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - CLEANING)
(Refer to 9 - ENGINE/LUBRICATION/OIL PUMP - INSPECTION)
.
