INSTALLATION

WARNING: Never reuse axle retainer nuts and bolts. Used torque nuts can loosen up. Failure to follow these instruction may result in personal injury.

1. Install axle assembly into axle tube.
2. Install new axle retainer nuts and tighten to 61 N·m (45 ft. lbs.).

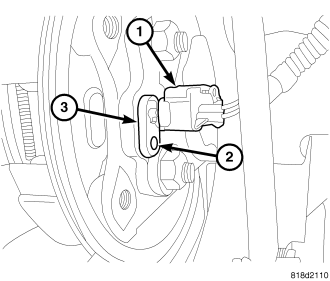

3. Install brake (2) and harness (1).

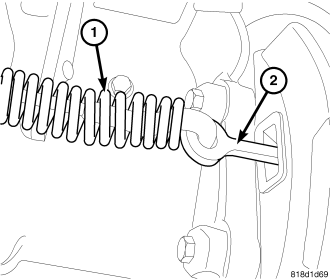

4. Install park brake cables (1).
