INSTALLATION

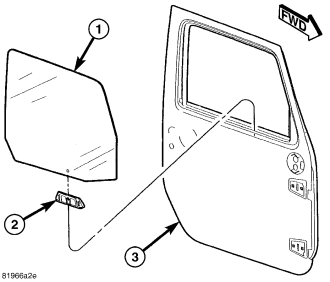

1. Install the glass (1) into the door (3), front and first.
2. Rotate glass into the correct orientation and push up into the weather seal.
3. Secure glass in the up position using tape or other suitable method.
4. Install the glass clip (2).

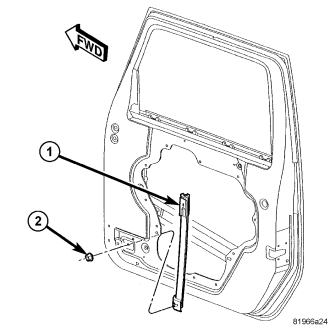

5. Position the glass run channel (1) back into place and install the nut (2).
6. Tighten the nut to 10 N·m (90 in. lbs.).
7. Install the carrier plate (1), (Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - INSTALLATION).
