REMOVAL
1. Remove axle shaft from vehicle.
NOTE: It is normal that the axle bearing race is loose in the axle tube.

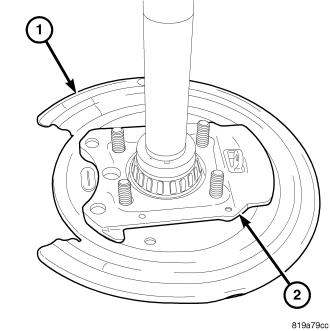

2. Remove brake dust shield (1) and support plate (2) from the axle.

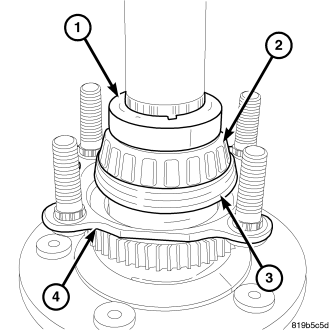

3. Bearing retainer (1), axle bearing (2), axle shaft seal (3) and axle shaft retainer (4) are removed as an assembly.

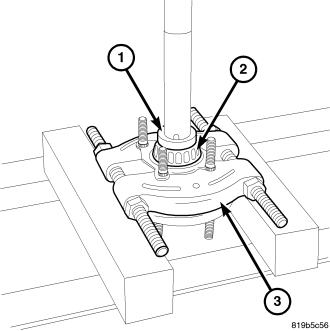

4. Remove bearing retainer (1) and bearing (2) with seal from axle with Splitter 1130 (3) and press. Position splitter between axle shaft retainer and tone ring and press assembly off shaft.
