› REMOVAL
REMOVAL
1. Remove the carrier plate (1),
(Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - REMOVAL)
.

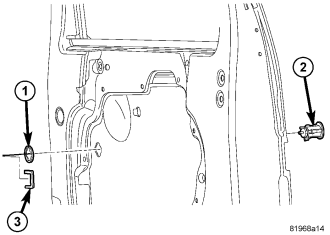

2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1) from the door.
