2007 Wrangler JK Factory Service Manual Not in the contents tree

REMOVAL






1. Remove the carrier plate (1),
(Refer to 23 - BODY/DOOR - FULL FRONT/CARRIER PLATE - REMOVAL).

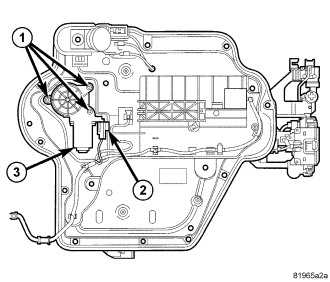

2. Remove the screws (1) and disconnect the electrical connector (2).
3. Remove the motor (3).



4. Remove the rail screws (2) and separate the lift regulator (3) from the carrier plate (1).
